What are the uses and characteristics of jacketed glass reactor?

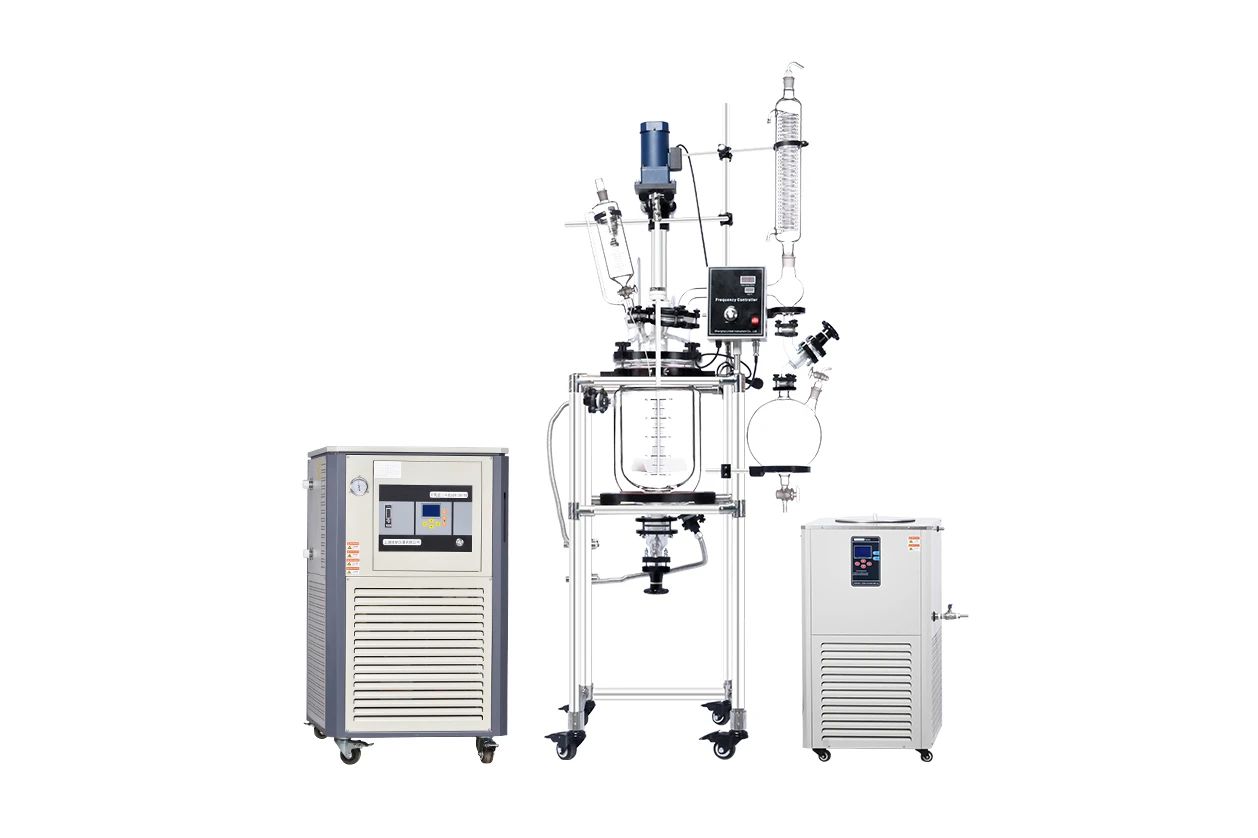

S212 series double-layer (jacketed) glass reactor is a multifunctional reactor, built-in stirring paddle, sandwich through the cold and hot source (refrigerant, water or silicone oil) can be heated/cooled at constant temperature, under set constant temperature conditions, in a closed container, under normal or negative pressure to stir, reaction, and can control the evaporation and reflux of reaction liquid. It is usually used with constant temperature heating oil bath, low temperature pump (chiller), vacuum pump to form supporting equipment, is the ideal experimental pilot test of modern synthetic chemical industry, biopharmaceutical and new material preparation, production instrument.

• A full set of glass instruments using GG17 high borosilicate glass material, with excellent physical and chemical properties.

• Can be used from low temperature (-120°C) to high temperature (200°C).

• Glass sandwich interface through the hot oil through the circulation, can do heating reaction, through the refrigerant can do low temperature reaction.

• Can work under normal and negative pressure conditions, vacuum degree up to 0.095MPa.

• Mixing paddle available as propeller, propulsion or anchor.

• Stainless steel vertical bracket and base, stable without deformation, with pulley support type optional.

• Glass accessories can be customized, such as PH drops.

• The cooling or heating solution of the sandwich can be completely removed after the reaction, and no liquid accumulation.

• Can be fitted with tank body insulation cover (for glass tank body insulation, improve reaction efficiency).

• Teflon +FV rubber cock or discharge valve; An "o" ring with a teflon protective coating.

• For Class IB explosive environment, it is necessary to use EXdⅡ BT4 explosion-proof products are available to meet the requirements of safe use.

• Can support customized PLC control system.
