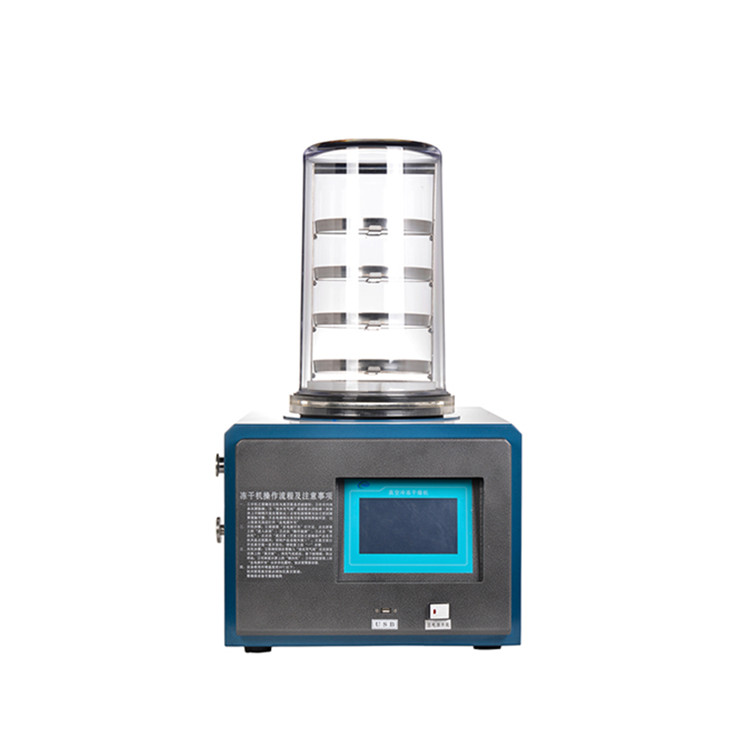

Experimental vacuum freeze dryer is widely used in biological research, chemical industry and food and other fields. Freeze-dried items are easy to preserve for a long time, and can be restored to the
Experimental vacuum freeze dryer is widely used in biological research, chemical industry and food and other fields. Freeze-dried items are easy to preserve for a long time, and can be restored to the state before freeze-dried and retain the original biochemical characteristics after adding water. It is suitable for laboratory use and can meet the requirements of routine lyophilization in most laboratories.
Product Modle | ZLGJ-10 (normal type) | ZLGJ-10 (Multi-manifold type) | ZLGJ-10 (Gland type) | ZLGJ-10 (Manifold gland type) | |||
Freeze-dried Area | 0.1 | 0.1 | 0.08 | 0.08 | |||
Cold Trap Coil Temperature | ≤-55℃(no load),≤-80℃(no load) | ||||||
Ultimate Vacuum | ≤5Pa(no load) | ||||||
Pumping Rate | 2L/S | ||||||
Water Capture Capacity | 3-4kg/24h | ||||||
Cooling Method | air cooling | ||||||
Defrost Mode | natural frost | ||||||
Host Weight | 48kg | ||||||
Host Dimension | 520x600x400 | ||||||
Total Power | 950W | ||||||
Material Tray | 4pcs,Disc diameter: φ180mm, disc spacing: 70mm | 3pcs,Disc diameter: φ180mm, gap between glands: 70mm | |||||
Eggplant Flask | / | 8pcs,100ml,150ml,250ml,500ml two each | / | 8pcs,100ml,150ml,250ml,500ml two each | |||
Vial | vialφ12:920;vialφ16:480; | vialφ12:560;vialφ16:285; | |||||
Working Ambient Temperature | 10℃~30℃ | ||||||
Relative Humidity | ≤70% | ||||||
Voltage | single phase 220V±10% 50HZ | ||||||
Working Environment | The working environment should be free from conductive dust, explosive, corrosive gases and strong electromagnetic field interference | ||||||
Transport Storage Ambient Temperature | 50℃~-40℃ | ||||||
