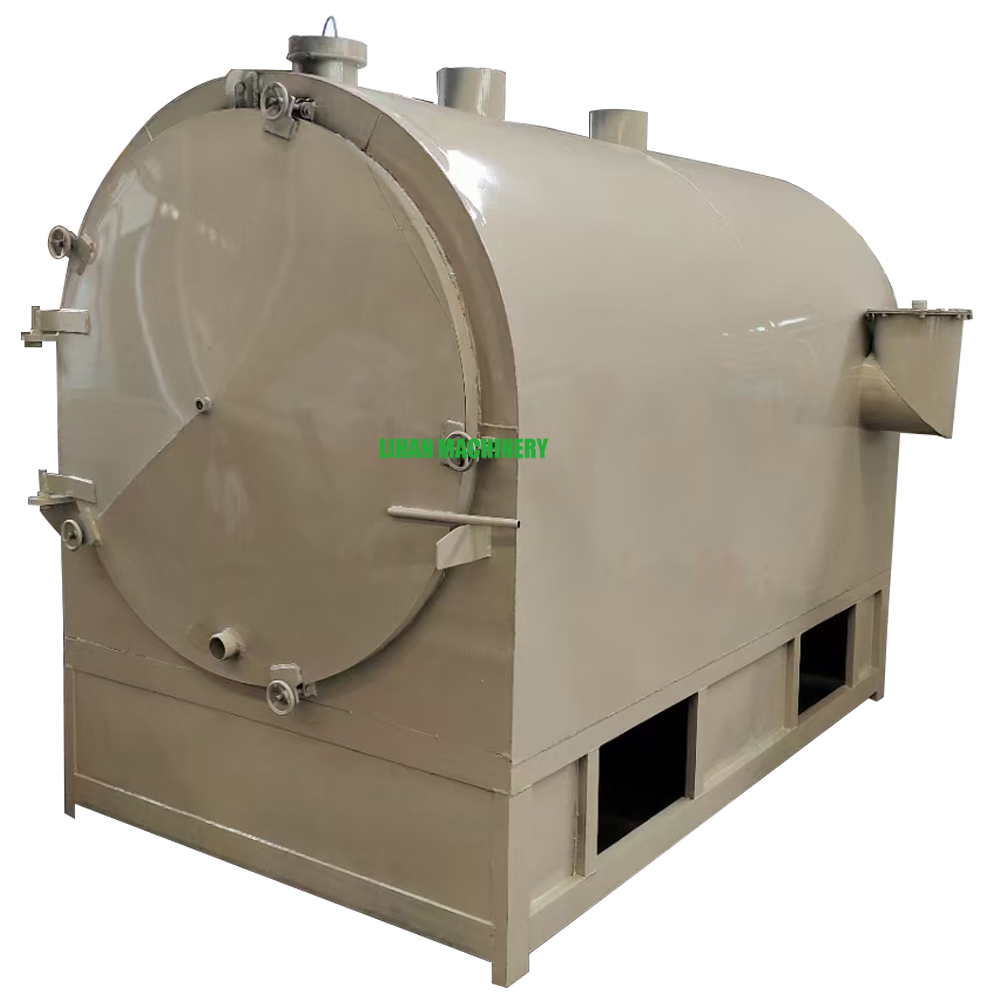

Horizontal carbonization furnace is a new kind of type carbonization stove, which can also be called charcoal kiln, charcoal making machine, charcoal stove. It adopts the advanced carbonized technology heat flow, uses a unique storage chamber structure, make full use of the flue gas produced by carbonization. It is used to make charcoal from the wood and all kinds of biomass.
▶6-8h can be carbonized furnace, carbonized rate is 99%.
▶It is an ideal equipment of family,large and medium scale production of charcoal.
1.High carbonization efficiency: The Affordable Small cost input Household Carbonization Stove Waste Wood Charcoal Making Machine Horizontal Multifunctional Furnace efficiency is up to 99%. It only takes 6-8 hours can got a batch of charcoal.
2.More Efficient: Guide rail and loading basket. They are uniquely equipped for the horizontal carbonizing machine. Workers can load the wood or briquettes into the steel basket and then push it into the carbonizing chamber. This design saves the labor cost a lot and makes the operation easier and more efficiency. Carbonization furnace to end charcoal cooling time is shorter, we design the water cooling. We use the gap between the intermediate layers to cool the carbonization furnace with unit water cooling, compare with the natural cooling more efficient and convenient. Carbonization furnace production can be greatly improved.3.Various heating methods: The heating source can be the firewood / coal/ coal gas/ natural gas/ liquefied gas/ Combustible gas/ burner, electric, etc..
5.Durable and long service life：Prominent three layers structure of the Affordable Small cost input Household Carbonization Stove Waste Wood Charcoal Making Machine Horizontal Multifunctional Furnace is the use of horizontal manufacturing process. The inner layer is high heat transfer and wear-resistance steel for increasing the carbonizing temperature. So can reduce its carbonization time. The middle layer is the asbestos for light insulation materials. It is possible to keep the temperature in the furnace at all times. The outer layer is painted steel.
6.Green and energy saving: The new environmentally friendly Affordable Small cost input Household Carbonization Stove Waste Wood Charcoal Making Machine Horizontal Multifunctional Furnace uses anaerobic coking and combustible gas recycling technology. After the flue gas is recovered, the purifier tank can clean the smoke, carbon monoxide,methane, oxygen and other combustible gas generated in the carbonizing. It can reach dust-free and smoke-free. The cleaned gas enters the burning chamber through the pipes can be used to ignite like liquefied gas for heating, cooking, and baking and used for dry machine and itself. Excess combustible gas can be recycled, recycled wood tar system, Recycling, purification and utilization of water vapor. In this process of recovery, purification, and advanced technology of cyclic combustion, no harmful gas is emitted and reduces the consumption of wood, coal, LPG, etc for heating, which solves the problem of common carbonization furnaces in the carbonization process.
7.High security level: The design of the carbonization fumace is reasonable, there is no gas pressure when carbonization, the carbonization furnace has an explosion-proof mouth. Even if the operation is improper, the gas will be discharged safely. The carbonization temperature is up to 700°C. If you accidentally touch it, also won't get burned. Because the external insulation material is very safe.
3. Carbonization process
5. After the charcoal finished and cooled, then use the rail car to delivery the charcoal out. Then all the steps are finished.
4. Raw materials & finished products
√New model horizontal bamboo charcoal carbonizer furnace oven can directly carbonize (Bulky timber): fruit tree, bamboo, wood branches, wood blocks, coconut shell, waste wood, trunks, wood logs, stumps, roots, wooden pallet, corncob, furniture factory scrap.
√Fine powder or granular materials（The fine, small and flake biomass powder must first be formed into wood chip sticks by a biomass briquette machine, which can be carbonized by a horizontal carbonization furnace.): sawdust, shavings, wood chips, rice husk, rice grams, peanut shell, wood chips, nut shells, palm shells, cashew nut shell, hemp straw, biomass, some crops, semi-coke bark, furfural residue.
5. Production line
♥We could customize reasonable and efficient production line according to customers' site, raw materials, output and other requirements.
