Simple Autoclave

The simple stainless steel kettle body and kettle cover are made of high-quality stainless steel.  The kettle body is connected to the flange by threads.  The kettle cover is a flat plate cover, and the two are firmly connected to the main bolt and nut.  The main sealing port of the autoclave adopts A-type double-line seal, and the remaining sealing points are sealed by the line contact between the arc surface and the plane, and the arc surface and the arc surface, relying on the high precision and smoothness of the contact surface to achieve a good Seal effect.

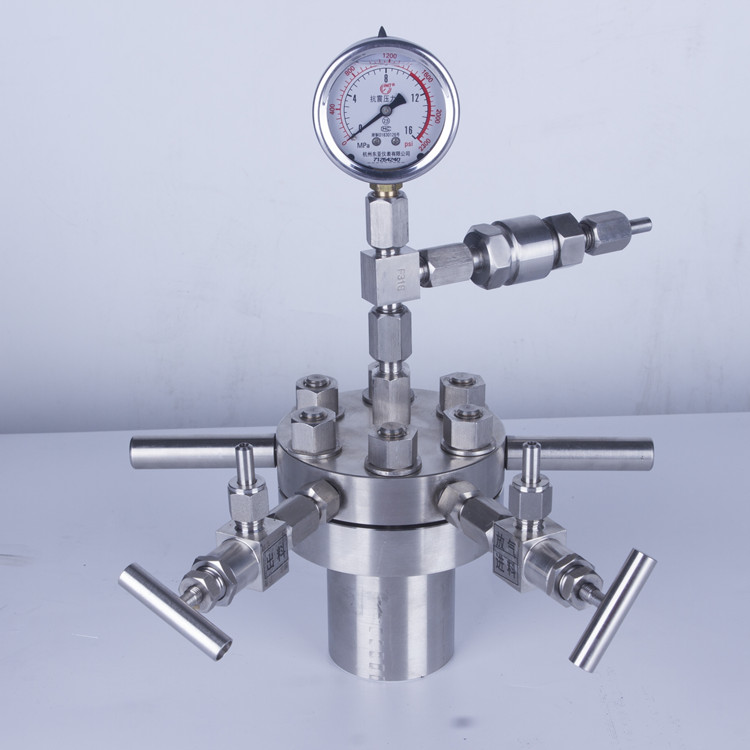

Above is small size 0.05L,0.1L,0.2L,0.25L,0.3L,0.5L CF stainless steel high pressure reaction kettle.

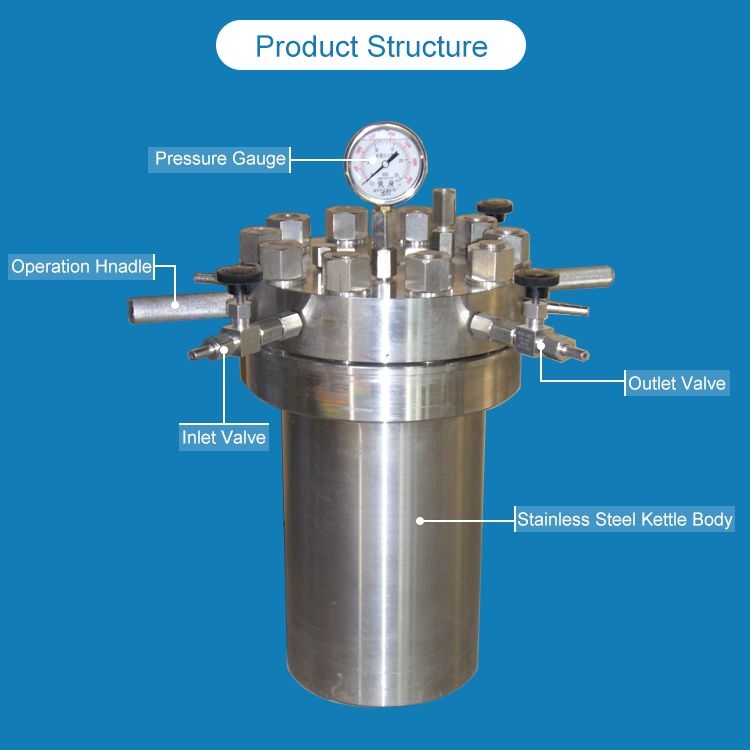

Above is big size 1L,2L,3L,5L,10L,20L CF simple chemical stainless steel high pressure reactor

CF-series Stainless steel high pressure reaction vessels has the following feactures:

1.High Pressure can be withstand 22Mpa(CF series).

2.For reaction of chemical,sulfide, fluoride, oxidation and static sealing, polymer composite materials and others

3.Standard configuration: one pressure gage;one intake valve;one outlet valve. Optional configuration:Explosion-proof valve;PTFE inner sleeve;Air duct.

4.The capacity can be 25ml,50ml,100ml,200ml,250ml,300ml,500ml,1L,2L,3L,5L,7L,10L,20L.

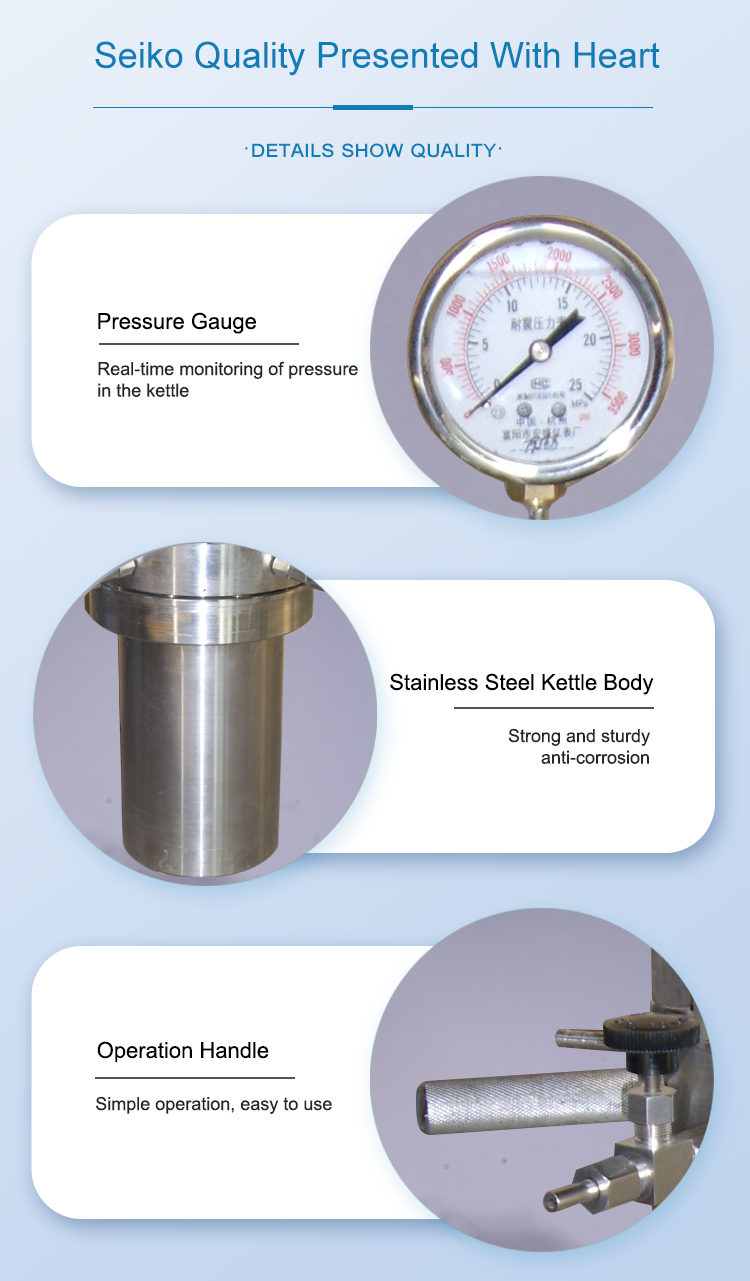

The product details of simple stainless steel high pressure reactor:

CF simple autoclave precautions:

1. The heating requires an external heat source. The working temperature is recommended to be no higher than 350 ° C. The heating rate is ≤5 ° Cmin. You can use a PID temperature control system to control the temperature and the cooling rate is ≤5 ° Cmin. The safety pressure is 22 MPa.

2. After feeding, the screws need to be symmetrically pressed. After the reaction is completed, wait for the kettle body to cool to room temperature before opening the kettle lid.

3. When feeding, please do not exceed 80% of the capacity of the kettle.
