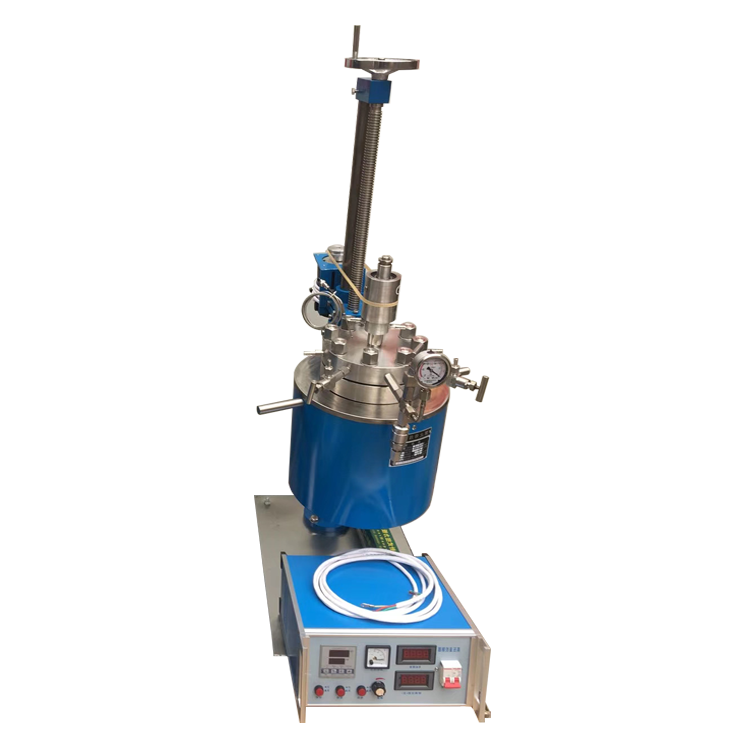

FCF series high-pressure stainless steel reactor is a lab use lifting high- pressure hydrogenation reactor. Please email us for details and price of hydrogenation reactor.
FCF series high-pressure stainless steel reactor is widely used in petroleum, chemical, organic synthesis, polymer material polymerization, food and other processes for sulfurization, fluorination, oxidation, etc. The main feature of this product is the static sealing structure. The magnetic coupling is connected between the agitator and the motor drive. The static seal replaces the dynamic seal. Working in status. This high-pressure stainless steel reactor is suitable for stirring reactions of various flammable, explosive, highly toxic, precious media and other highly permeable chemical media. It also have heating fuction.

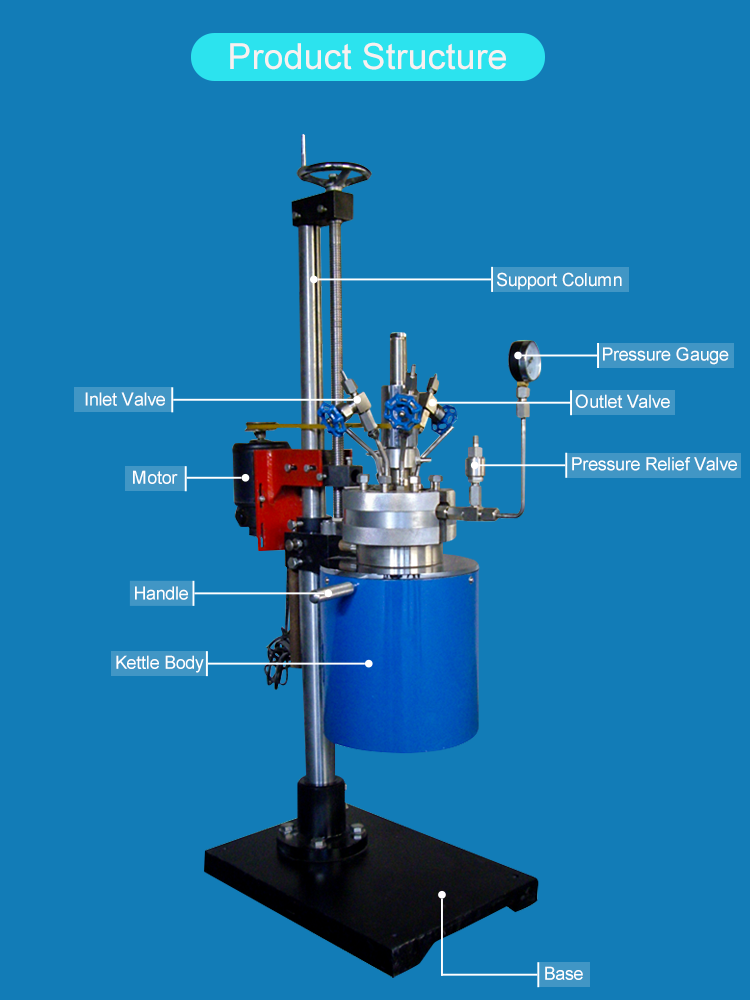

The structure of high pressure hydrogenation reactor
The advantages of high pressure stainless steel reactor

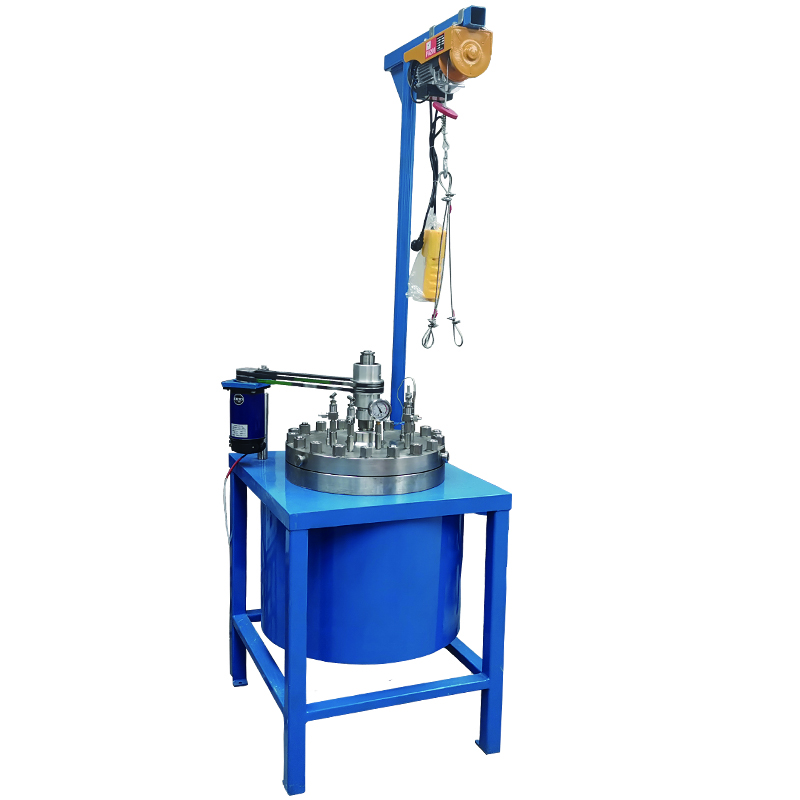

FCF series high pressure reactor with lifting function, heating fuction, stirring function, the product details is as below.
We supply 0.1L,0.25L,1L,2L,3L,5L,10L,20L,30L,50L,100L volume stainless steel high pressure reactor.
The material of stainless steel high pressure chemical reactor is SS304 or SS316L stainless steel, for strong acid and alkali reaction materials, high pressure reactor can also be customized Hastelloy material.
The design pressure less than 22Mpa,Max temperature less than 350 degree.
This machine adopt PID automatic temp regulation,stirring speed, temperature,time and heating voltage all can be digital displaied.
There also some optional configurations like: Motor current meter ; presusure digital display; computer software etc.
Please send your requirements to us for details and price.
