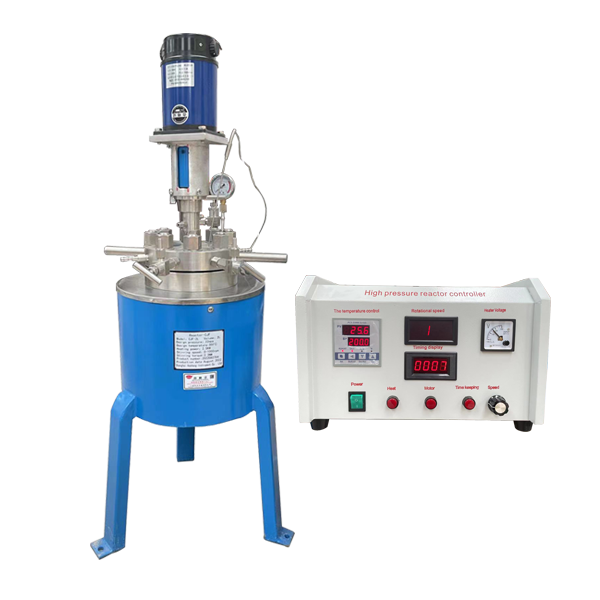

CJF and FCF series high pressure reactor are an autoclave reaction vessel for liquid-liquid, gas-liquid, liquid-solid or gas-liquid solid chemical reactor. Please provide detailed requirements for inquiry.
The high temperature and high pressure reaction kettle adopts a static seal structure, and the stirrer and the motor drive are connected by a magnetic coupler. Due to its non-contact transmission torque, the static seal replaces the dynamic seal, which can completely solve the leakage problem of stirring and make the whole medium and stirring safety. The components are completely sealed in a state of absolute sealing, so it is more suitable for stirring reactions of various flammable, explosive, highly toxic, precious media and other chemical media with strong penetrating force. It is the most ideal leak-free reaction equipment for vulcanization, fluorination, oxidation and other reactions in polymer material polymerization, food and other processes.
We supply 0.1L,0.25L,1L,2L,3L,5L,10L,20L,30L,50L volume stainless steel high pressure reactor.
The material of Kesheng brand stainless steel high pressure chemical reactor is SS304 or SS316L stainless steel.
The design pressure less than 22Mpa,Max temperature less than 350 degree.
This machine adopt PID automatic temp regulation,stirring speed, temperature,time and heating voltage all can be digital displaied.
There also some optional configurations like:Motor current meter ;presusure digital display;computer software etc.

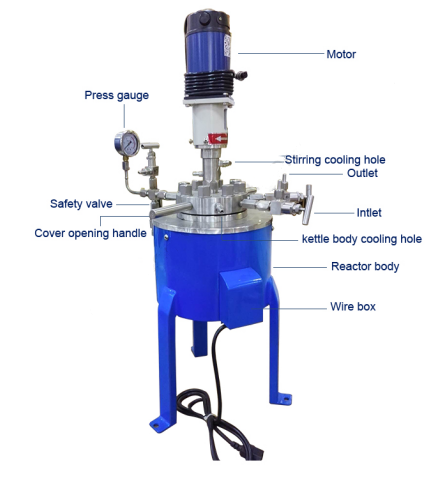

The sturecture of stainless steel high pressure reactor
This lab high pressure reactor autoclave contains following parts: support column, pressure gauge, inlet valve, outlet valve, motor, pressure relief valve, handle, kettle body, etc. The detailed structure picture is as below.

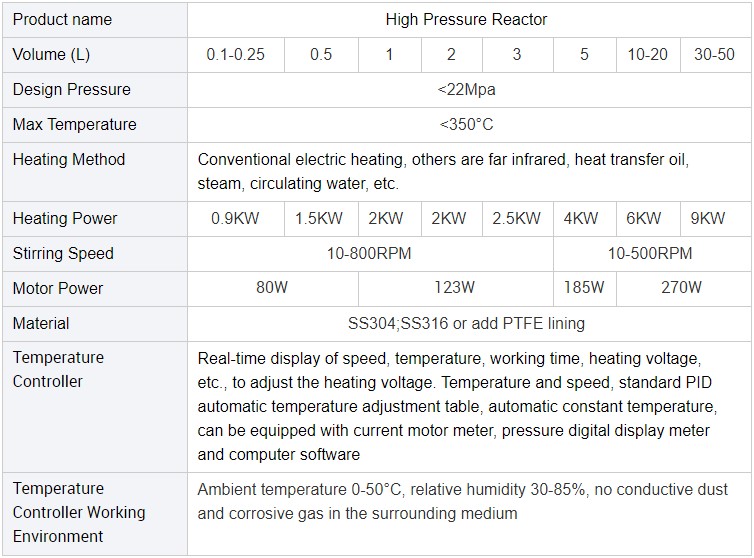

The high temperature and high pressure autoclave have different specifications and models. The following specifications and parameters are for reference. If you have special customization requirements, such as volume, material, temperature, etc., you can email us to tell your detailed requirements, we provide you with suitable design solutions.
FAQ
NO.1 What is the minimum order quantity?
one set.
NO.2 What payment terms can you accept?
We usually accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exact term will be discussed during the deal.
NO.3 How to solve the equipment trouble during using?
Please send us email for the problem, pictures or a small video will be much better, we will find the problem and help you to solve it.
NO.4 Will you provide service beyond the warranty?
Yes, we provide lifetime service for our products, but it won't be free beyond the warranty period.
